PEA-M200LAA High Capacity Splittable Ducted System with Wi-Fi Control Interface
PEA-M200LAA High Capacity Splittable Ducted System with Wi-Fi Control Interface
PEA-M200LAA High Capacity Splittable Ducted System with Wi-Fi Control Interface
Mitsubishi Electric

Large House
Platinum.
Central Ductedpea-m200White

Mitsubishi Electric Large House PEA-M200LAA High Capacity Splittable Ducted System with Wi-Fi Control Interface

The PEA Splittable Ducted Series represents the pinnacle of whole-home climate control, combining powerful performance with innovative installation flexibility. Its unique two-piece design makes it ideal for remodelling projects and homes with challenging roof spaces. With comprehensive heating and cooling capacity, this system delivers consistent comfort throughout large residences while remaining completely hidden from view.

At a glance

  • 22.4KW Heating
  • 20KW Cooling
  • Central Ducted
  • Smart Enabled
  • Eco Friendly
Available Sizes & Colours

peam100 White

Medium
House

peam100 White

Medium
House

pea100 White

Medium
House

pea100 White

Medium
House

peam125 White

Medium
House

peam125 White

Medium
House

pea125 White

Medium
House

pea125 White

Medium
House

peam140 White

Large
House

peam140 White

Large
House

pea140 White

Large
House

pea140 White

Large
House

peam160 White

Large
House

peam160 White

Large
House

peam180 White

Large
House

peam180 White

Large
House

peam200 White

Large
House

peam200 White

Large
House

peam250 White

Extra
Large House

peam250 White

Extra
Large House

Book InstallationContact

Key Features

Latest Tech. Built for Comfort.

Whole
Home Comfort

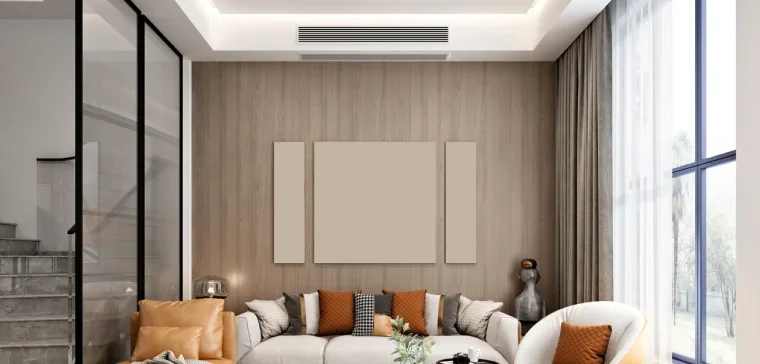

Designed for large residences and offices, this ducted system provides comprehensive climate control throughout your entire space. Only grilles are visible, making it the ultimate hidden heating and cooling solution.

Splittable
Design for Easy Installation

The innovative two-piece construction allows the heat exchanger and fan deck to be separated, making installation in tight roof spaces much easier. Perfect for remodelling existing homes where access is limited.

Flexible
Maintenance Access

Two-way access to both the fan deck assembly and drain pan makes routine maintenance simple and convenient. Service technicians can access components from multiple angles, reducing maintenance time and costs.

Roof
Truss Compatible

The unique splittable design allows installation even in homes with roof trusses, where traditional ducted systems might not fit. This opens up ducted heating options for more home types and architectural styles.

High-Capacity
Performance

With powerful heating and cooling capacity, this system handles large spaces with ease. Advanced inverter technology ensures efficient operation while maintaining consistent comfort throughout your home.

Complete Specifications.

Specifications
ModelPEA-M200LAA High Capacity Splittable Ducted System with Wi-Fi Control Interface
Model Numberpea-m200laa-mac-588if-e
Series Codepea
Size Codem200
SeriesPEA Splittable Ducted Series
Use CaseLarge House
Heating Capacity22.4 kW
Cooling Capacity20 kW
Size20 kW
Dehumidifying CapacityN/A
Heating Operating Range-20 to +21 degC
Cooling Operating Range-15 to +52 degC
Refrigerant TypeR32
Power Supply230V / Single Phase / 50 Hz
Operation TypeSingle Split, Inverter
Outdoor Unit Noise Level60 dB
App ControlYes
Home Automation IntegrationYes
Voice ControlYes
Warranty
Parts & Labour5 Years
Energy Efficiency
Energy Star RatingN/A
Annual Energy Efficiency RatioN/A
Energy Efficiency Ratio3.12
Annual Coefficient of PerformanceN/A
Coefficient of Performance3.79
Annual Heating Consumptionnull kWh
Annual Cooling Consumptionnull kWh
Total Annual Energy Consumptionkwhnull kWh
Dimensions
Indoor Unit Width1370 mm
Indoor Unit Height470 mm
Indoor Unit Depth1120 mm
Indoor Unit Weight88 kg
Outdoor Unit Width1050 mm
Outdoor Unit Height1338 mm
Outdoor Unit Depth330 mm
Outdoor Unit Weight136 kg

Additional info

Document Library .

Brochure
Warranty

Professional Installation

Expert Installation Service.

Our certified technicians ensure your heat pump is installed to the highest standards, maximizing efficiency and longevity. We handle everything from site assessment to final commissioning, so you can enjoy optimal comfort from day one.

Installation Process

  • Site Assessment: Comprehensive evaluation of your home's layout and electrical requirements
  • Professional Installation: Expert mounting and connection by certified technicians
  • System Commissioning: Complete testing and optimization of your new heat pump
  • User Training: Hands-on demonstration of controls and maintenance tips
Book InstallationContact
