AP20 Mini High Wall Heat Pump
AP20 Mini High Wall Heat Pump
AP20 Mini High Wall Heat Pump
AP20 Mini High Wall Heat Pump
  1. Home
  2. Heat pumps
  3. Highwall mounted
  4. Mitsubishi electric ap 20 standard
  5. White
  6. Weekly
  7. Msz ap20vgd
Mitsubishi Electric

X Small Room
Plus.
Highwall Mountedap-20White

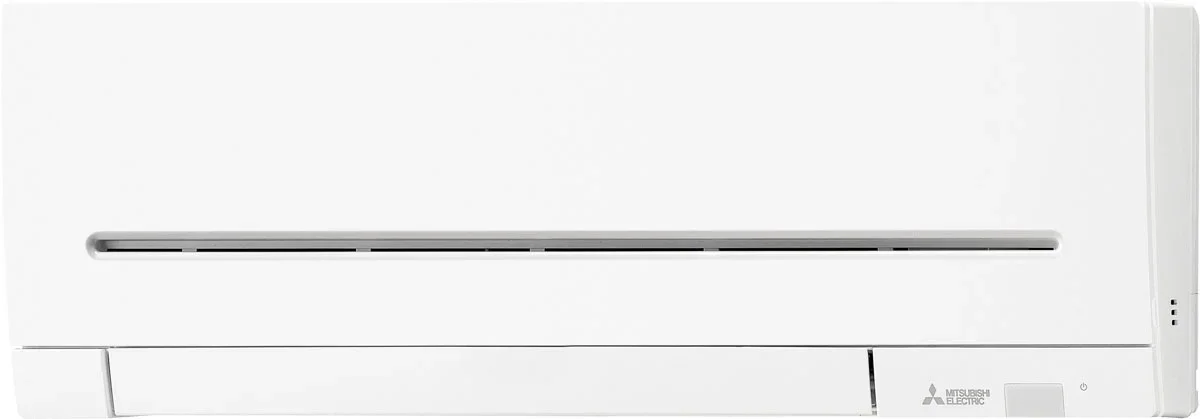

Mitsubishi Electric X Small Room AP20 Mini High Wall Heat Pump

The AP Mini Series is New Zealand's smallest high wall heat pump, making it perfect for bedrooms and compact spaces. Despite its small size, it delivers powerful performance and smart features that keep your room comfortable while saving energy. Its whisper-quiet operation, advanced filtration options, and user-friendly controls make it an ideal choice for creating comfortable, healthy spaces in any home.

At a glance

  • 2.5KW Heating
  • 2KW Cooling
  • High Wall
  • Energy Efficient
  • Eco Friendly
Available Sizes & Colours

X Small Room
Plus.
ap-20 White

Mitsubishi Electric X Small Room AP20 Mini High Wall Heat Pump

X Small Room <br><i>Plus</i>. <br> <span class="code">ap-20</span> <span class="color white">White</span>

Small Room
Premium.
ap-25 White

Mitsubishi Electric Small Room AP25 Smart High Wall Heat Pump

Small Room <br><i>Premium</i>. <br> <span class="code">ap-25</span> <span class="color white">White</span>

Small Room
Plus.
ap-25 White

Mitsubishi Electric Small Room AP25 Classic High Wall Heat Pump

Small Room <br><i>Plus</i>. <br> <span class="code">ap-25</span> <span class="color white">White</span>

Medium Room
Premium.
ap-35 White

Mitsubishi Electric Medium Room AP35 Smart High Wall Heat Pump

Medium Room <br><i>Premium</i>. <br> <span class="code">ap-35</span> <span class="color white">White</span>

Medium Room
Plus.
ap-35 White

Mitsubishi Electric Medium Room AP35 Classic High Wall Heat Pump

Medium Room <br><i>Plus</i>. <br> <span class="code">ap-35</span> <span class="color white">White</span>

Medium Room
Premium.
ap-42 White

Mitsubishi Electric Medium Room AP42 Smart High Wall Heat Pump

Medium Room <br><i>Premium</i>. <br> <span class="code">ap-42</span> <span class="color white">White</span>

Medium Room
Plus.
ap-42 White

Mitsubishi Electric Medium Room AP42 Classic High Wall Heat Pump

Medium Room <br><i>Plus</i>. <br> <span class="code">ap-42</span> <span class="color white">White</span>

Large Room
Premium.
ap-50 White

Mitsubishi Electric Large Room AP50 Smart High Wall Heat Pump

Large Room <br><i>Premium</i>. <br> <span class="code">ap-50</span> <span class="color white">White</span>

Large Room
Plus.
ap-50 White

Mitsubishi Electric Large Room AP50 Classic High Wall Heat Pump

Large Room <br><i>Plus</i>. <br> <span class="code">ap-50</span> <span class="color white">White</span>

X Large Room
Premium.
ap-60 White

Mitsubishi Electric X Large Room AP60 Plus High Wall Heat Pump

X Large Room <br><i>Premium</i>. <br> <span class="code">ap-60</span> <span class="color white">White</span>

X Large Room
Plus.
ap-60 White

Mitsubishi Electric X Large Room AP60 Classic High Wall Heat Pump

X Large Room <br><i>Plus</i>. <br> <span class="code">ap-60</span> <span class="color white">White</span>

X Large Room
Premium.
ap-71 White

Mitsubishi Electric X Large Room AP71 Smart High Wall Heat Pump

X Large Room <br><i>Premium</i>. <br> <span class="code">ap-71</span> <span class="color white">White</span>

X Large Room
Plus.
ap-71 White

Mitsubishi Electric X Large Room AP71 Classic High Wall Heat Pump

X Large Room <br><i>Plus</i>. <br> <span class="code">ap-71</span> <span class="color white">White</span>

Small Open Space
Premium.
ap-80 White

Mitsubishi Electric Small Open Space AP80 Smart High Wall Heat Pump

Small Open Space <br><i>Premium</i>. <br> <span class="code">ap-80</span> <span class="color white">White</span>

Small Open Space
Plus.
ap-80 White

Mitsubishi Electric Small Open Space AP80 Classic High Wall Heat Pump

Small Open Space <br><i>Plus</i>. <br> <span class="code">ap-80</span> <span class="color white">White</span>
Book InstallationContact

Key Features

Packed with Power. Built for Comfort.

Perfect
Night's Sleep

Sleep soundly with Night Mode, which dims the display light, silences any beeping, and reduces outdoor noise by 3dBA. Your family and neighbors will appreciate the extra quiet operation during bedtime.

No
More Cold Drafts

Stay cozy without feeling cold air blowing directly on you. The horizontal airflow system gently spreads cool air across the ceiling first, creating an even, comfortable environment throughout the room.

Smart
Energy Savings

Save money on your power bills with Econo Cool, which cleverly adjusts airflow patterns to make the room feel cooler while using less energy - perfect for managing summer cooling costs.

Memory
Settings for Easy Control

The i-Save Mode remembers your favorite temperature and fan settings, including an energy-saving 10°C setting for when rooms are empty. One button press returns your room to your ideal comfort level.

Built
for Coastal Living

Perfect for New Zealand's coastal homes, the Blue Fin coating protects your heat pump from salt air and environmental wear, helping it run efficiently for years to come.

Weekly
Timer for Smart Comfort

Program up to four temperature changes each day of the week. Wake up warm, come home to comfort, and save energy while you're away - all automatically.

Control
from Anywhere

Add optional Wi-Fi control to manage your home's temperature from your phone. Running late? Coming home early? Adjust your heat pump from anywhere so you always arrive to perfect comfort.

Healthier
Air for Your Family

Breathe easier with the optional Plasma Quad Connect air filtration system. It removes dust, allergens, and other particles, creating cleaner, healthier air throughout your home all year round.

Complete Specifications.

Specifications
ModelAP20 Mini High Wall Heat Pump
Model Numbermsz-ap20vgd
Series Codeap
Size Code20
SeriesAP Mini Series
Use CaseExtra Small Room
Heating Capacity2.5 kW
Cooling Capacity2 kW
Size2 kW
Dehumidifying CapacityN/A
Heating Operating Range-15 degC to +24 degC
Cooling Operating Range-10 degC to +46 degC
Refrigerant TypeR32
Power Supply230V / Single Phase / 50/60 Hz
Operation TypeSingle Split, Inverter
Outdoor Unit Noise Level47 dB
Home Automation IntegrationYes
App ControlYes
Voice ControlYes
Energy TrackingYes
Antibacterial FilterYes
Dust Collection FilterYes
Warranty
Parts & Labour5 Years
Energy Efficiency
Energy Star RatingN/A
Annual Energy Efficiency Ratio4.35
Energy Efficiency Ratio4.35
Annual Coefficient of Performance4.17
Coefficient of Performance4.17
Annual Heating Consumptionnull kWh
Annual Cooling Consumptionnull kWh
Total Annual Energy Consumptionkwhnull kWh
Dimensions
Indoor Unit Width760 mm
Indoor Unit Height250 mm
Indoor Unit Depth178 mm
Indoor Unit Weight8.2 kg
Outdoor Unit Width800 [object Object]
Outdoor Unit Height550 [object Object]
Outdoor Unit Depth285 [object Object]
Outdoor Unit Weight31 kg

Additional info

Document Library .

Brochure
Operation Manual / User Guide
Quick Start Guide
Cleaning Instructions
Warranty

Professional Installation

Expert Installation Service.

Our certified technicians ensure your heat pump is installed to the highest standards, maximizing efficiency and longevity. We handle everything from site assessment to final commissioning, so you can enjoy optimal comfort from day one.

Installation Process

  • Site Assessment: Comprehensive evaluation of your home's layout and electrical requirements
  • Professional Installation: Expert mounting and connection by certified technicians
  • System Commissioning: Complete testing and optimization of your new heat pump
  • User Training: Hands-on demonstration of controls and maintenance tips
Book InstallationContact
