AS90 Large Capacity High Wall Heat Pump
Mitsubishi Electric

Small Open Space
Plus.
Highwall Mountedas-90White

Mitsubishi Electric Small Open Space AS90 Large Capacity High Wall Heat Pump

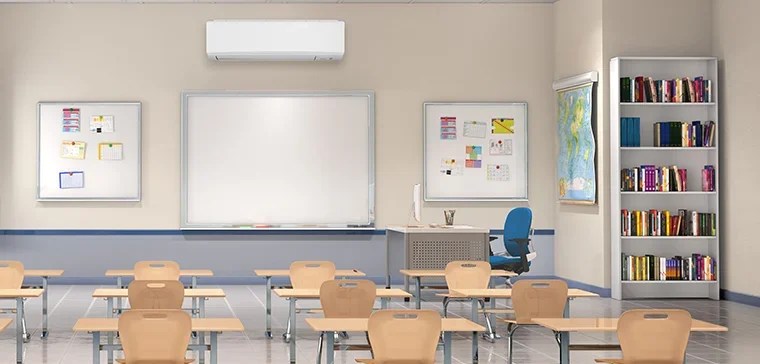

The AS Series delivers powerful performance in an elegant package, making it perfect for larger spaces like open-plan living areas, schools, and shared spaces. With its combination of energy-efficient operation and advanced comfort features, it provides consistent heating and cooling while keeping running costs low. The unit's smart features, including optional Wi-Fi control and advanced filtration, create a comfortable and healthy environment that's easy to manage. Its robust design and protective features make it especially suitable for New Zealand's varied climate conditions.

At a glance

  • 10.3KW Heating
  • 9KW Cooling
  • High Wall
  • Eco Friendly
Available Sizes & Colours

as90 White

Small
Open Space

Book InstallationContact

Key Features

Packed with Power. Built for Comfort.

Energy-Smart
Technology

Save on your power bills with next-generation R32 technology. This environmentally friendly system delivers efficient heating and cooling while using less energy than traditional heat pumps, helping you stay comfortable for less.

Powerful
Quick-Heat Mode

Get warm faster with Powerful Mode. One touch automatically adjusts fan speed and temperature to reach your desired comfort level within 15 minutes - perfect for those cold winter mornings or when you've just arrived home.

Even
Room Temperature

Enjoy consistent comfort in every corner with Wide & Long Airflow. This smart feature ensures warm or cool air reaches throughout your entire room, eliminating hot and cold spots.

Built
for Coastal Living

Perfect for New Zealand's coastal homes, the Blue Fin coating protects your heat pump from salt air and coastal conditions. This special treatment helps maintain efficiency and extends the life of your investment.

Advanced
Air Filtration

Breathe healthier air with two-stage filtration. The washable filter system captures dust, pollen, and allergens, making it ideal for families with allergies or anyone wanting cleaner indoor air.

Smart
Energy Saving

Save money with i-save Mode, which remembers your preferred settings and includes a 10°C energy-saving option for unoccupied rooms. One button press returns your room to perfect comfort when you need it.

Summer
Energy Efficiency

Stay cool for less with Econo Cool, which cleverly adjusts airflow patterns to make the room feel cooler while using less energy - perfect for managing summer cooling costs.

Peaceful
Night Operation

Sleep soundly with Night Mode, which dims the operation light, silences beeping sounds, and reduces outdoor unit noise. Both you and your neighbors will appreciate the quiet operation.

7-Day
Programming

Set your perfect weekly schedule with up to four temperature changes per day. Wake up warm, come home to comfort, and save energy while you're away - all automatically.

Optional
Wi-Fi Control

Add Wi-Fi Control to manage your heat pump from anywhere using your smartphone. Adjust settings on the go, monitor usage, and ensure your home is always at the perfect temperature when you arrive.

Hospital-Grade
Air Filtration Option

For ultimate air quality, add the optional Plasma Quad Connect. This advanced system removes microscopic particles, allergens, and bacteria, bringing hospital-grade air purification to your home.

Complete Specifications.

Specifications
ModelAS90 Large Capacity High Wall Heat Pump
Model Numbermsz-as90vgd
Series Codeas
Size Code90
SeriesAS Series
Use CaseSmall Open Space
Heating Capacity10.3 kW
Cooling Capacity9 kW
Size9 kW
Dehumidifying CapacityN/A
Heating Operating Range-15 to +24 degC
Cooling Operating Range-10 to +46 degC
Refrigerant TypeR32
Power Supply230V / Single Phase / 50Hz
Operation TypeSingle Split, Inverter
Outdoor Unit Noise Level56 dB
Voice ControlYes
App ControlYes
Energy TrackingYes
Home Automation IntegrationYes
Dust Collection FilterYes
Antibacterial FilterYes
Warranty
Parts & Labour5 Years
Energy Efficiency
Energy Star RatingN/A
Annual Energy Efficiency Ratio3.23
Energy Efficiency Ratio3.24
Annual Coefficient of Performance3.5
Coefficient of Performance3.5
Annual Heating Consumptionnull kWh
Annual Cooling Consumptionnull kWh
Total Annual Energy Consumptionkwhnull kWh
Dimensions
Indoor Unit Width1170 mm
Indoor Unit Height365 mm
Indoor Unit Depth295 mm
Indoor Unit Weight20 kg
Outdoor Unit Width840 mm
Outdoor Unit Height880 mm
Outdoor Unit Depth330 mm
Outdoor Unit Weight53 kg

Additional info

Document Library .

Brochure
Operation Manual / User Guide
Cleaning Instructions
Warranty

Professional Installation

Expert Installation Service.

Our certified technicians ensure your heat pump is installed to the highest standards, maximizing efficiency and longevity. We handle everything from site assessment to final commissioning, so you can enjoy optimal comfort from day one.

Installation Process

  • Site Assessment: Comprehensive evaluation of your home's layout and electrical requirements
  • Professional Installation: Expert mounting and connection by certified technicians
  • System Commissioning: Complete testing and optimization of your new heat pump
  • User Training: Hands-on demonstration of controls and maintenance tips
